Bi-Directional TVS Diode LESD5D5.0CT1G
3.00৳ Pcs
Bi-Directional TVS Diode LESD5D5.0CT1G comes in a tiny SOD-523 package, allows design flexibility in the design of high density boards where the space saving is at a premium. This enables to shorten the routing and contributes to hardening against ESD
In stock
Bi-Directional TVS Diode for ESD Protection Diode
The LESD5D5.0CT1G Bi-Directional TVS is designed to protect voltage sensitive components from ESD and transient voltage events. Excellent clamping capability, low leakage, and fast response time, make these parts ideal for ESD protection on designs where board space is at a premium.
Surface mount TVS offers the best choice for minimal lead inductance. They serve as parallel protection elements, connected between the signal lines to ground. As the transient rises above the operating voltage of the device, the TVS becomes a low impedance path diverting the transient current to ground. The LESD5D5.0CT1G is the ideal board evel protection of ESD sensitive components.

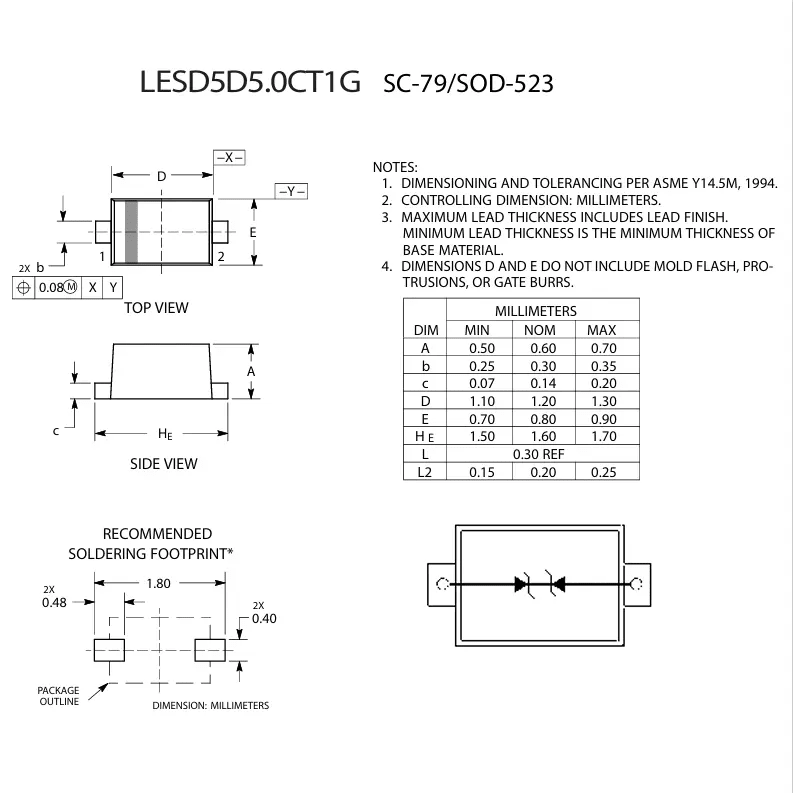

The tiny SOD-523 package allows design flexibility in the design of high density boards where the space saving is at a premium. This enables to shorten the routing and contributes to hardening against ESD
Absolute Maximum Ratings
|
Parameter |
Symbol |
Value |
Units |
|---|---|---|---|
|
Peak Pulse Power (tp = 8/20 μs) |
PPP |
150 |
W |
|
Maximum lead temperature for soldering during 10s |
TL |
260 |
°C |
|
Storage Temperature Range |
Tstg |
-55 to +155 |
|
|
Operating Temperature Range |
Top |
-40 to +125 |
|
|
Maximum junction temperature |
Tj |
150 |
|
|
IEC61000-4-2 (ESD) - air discharge |
±15 |
KV |
|
|
IEC61000-4-2 (ESD) - contact discharge |
±8 |
||
|
IEC61000-4-4 (EFT) |
40 |
A |
|
|
ESD Voltage - Per Human Body Model |
16 |
KV |
Electrical Characteristics
Ratings at 25°C ambient temperature unless otherwise specified.VF = 0.9V at IF = 10mA
|
VRWM (V) |
IR(µA) @ VRWM |
VBR (V) @ IT |
IT |
VC (V) @ IPP=5 A* |
VC(V) @ Max IPP* |
IPP (A)* |
PPK (W)* |
C (pF) |
|
|---|---|---|---|---|---|---|---|---|---|
| Max | Max | Max |
Min |
mA |
Typ |
Max | Max | Max |
Typ |
|
5.0 |
1 |
7.8 |
5.6 |
1.0 |
11.6 |
18.6 | 9.4 | 174 |
15 |
1. VBR is measured with a pluse test current IT at an ambient temperature of 25℃．

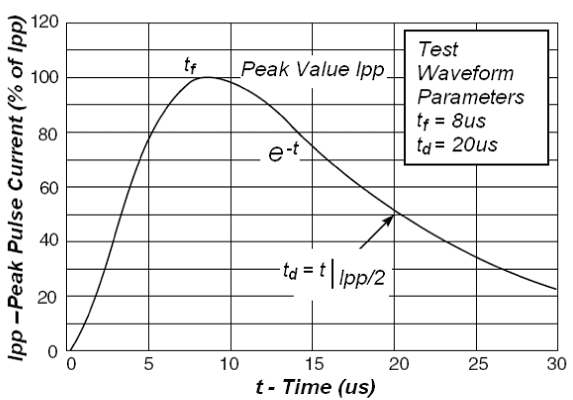

Fig1. Pulse Waveform
FAQ about LESD5D5.0CT1G TVS diode
Yes, the LESD5D5.0CT1G is a bi-directional TVS diode, meaning it can protect against transient voltage spikes in both positive and negative directions.
Typical applications include protection of data lines, communication lines, and sensitive electronic circuits from voltage transients caused by electrostatic discharge (ESD) and other transient voltage events. It's a Bi-Directional TVS diode as smd component, It can give protection bothway.
The LESD5D5.0CT1G is a Transient Voltage Suppression (TVS) diode designed to protect sensitive electronics from voltage spikes and transient events.
The maximum reverse standoff voltage (VRWM) is 5.0V.
The breakdown voltage (VBR) typically ranges between 5.3V and 5.9V at a test current of 1mA.
The maximum clamping voltage (Vc) is 9.8V at a peak pulse current of 1A.
The peak pulse power dissipation (Ppp) is 350W for an 8/20µs waveform.
The typical response time is less than 1ns, providing rapid protection against transient voltage spikes.
The LESD5D5.0CT1G clamps the voltage to a safe level during an ESD event, thus protecting the sensitive components downstream.
The maximum leakage current (IR) is 1µA at the maximum reverse standoff voltage of 5.0V.
Yes, the LESD5D5.0CT1G is designed to handle repeated transient events and maintain its protective capabilities.
The LESD5D5.0CT1G is a versatile and reliable bi-directional TVS diode designed to protect sensitive electronics from voltage spikes and transients. With a maximum reverse standoff voltage of 5.0V, low leakage current, and rapid response time, it is ideal for safeguarding data lines, communication lines, and various electronic circuits. Its compliance with RoHS, IEC standards, and robust mechanical design make it a dependable choice for a wide range of applications.
Reference
Table Of Contents
| Brand |
LRC |
|---|---|
| Package/Size |
SOD-523 |
| Mounting |
SMD/SMT |
| রিভার্স লিকেজ কারেন্ট (Ir) |
1uA @ 5V |
