SH69P26M-028MU MCU

128.00৳ Pcs

SH69P26M is SH6610D-based single-chip 4-bit micro-controller
Typical Applications:

  • Remote controls
  • Simple consumer electronics
  • Toys
  • Small household appliances
  • Basic peripheral controllers
128.00৳
1 - 9
126.00৳
10+

In stock

0 People watching this product now!
SKU: SMC-17683 Category: Brand:
স্পেসিফিকেশন
Package/Size

SOP-28

Brand

SINO WEALTH ELECTRONIC LTD

ROM Type

One-Time Programmable

,

OTPROM

Mounting

SMD/SMT

বিবরণ

SH69P26M-028MU - single-chip 4-bit micro-controller

The SH69P26M-028MU is based on the SH6610D 4-bit MCU architecture, designed for simple, low-power control tasks. It includes a built-in 11.72KB OTP ROM for program storage and RAM for temporary data, typically optimized for small, efficient codebases. The SH69P26 is suitable for microwave oven application.

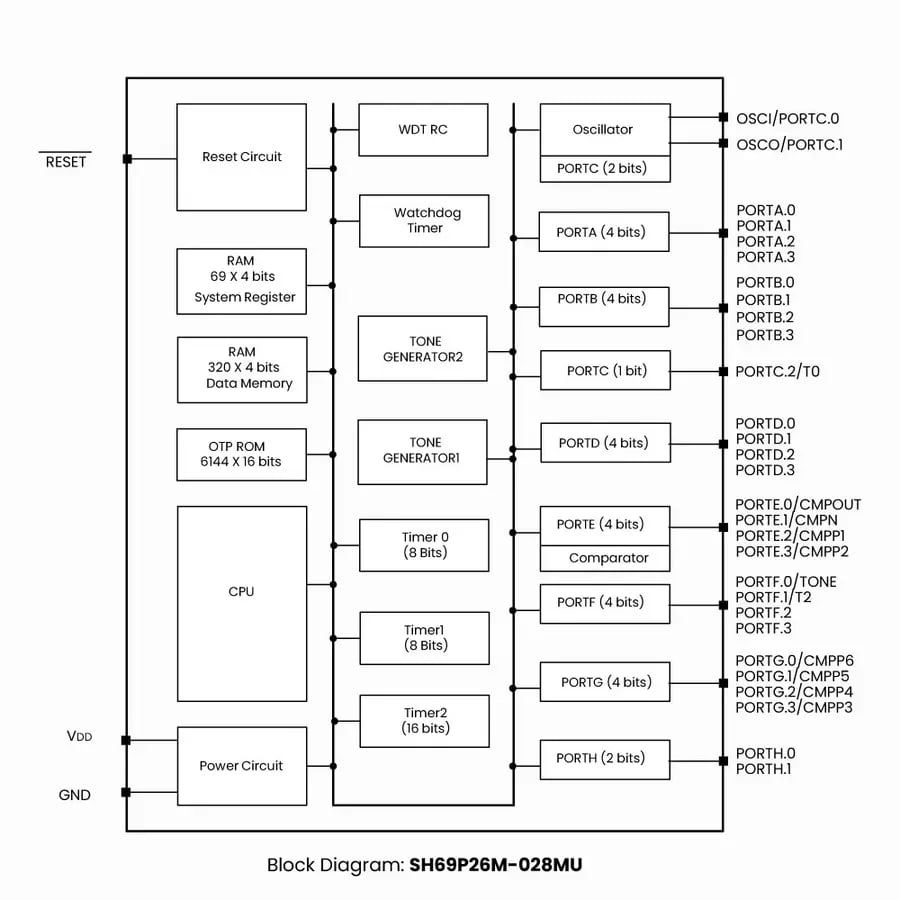

Simplified Schematic

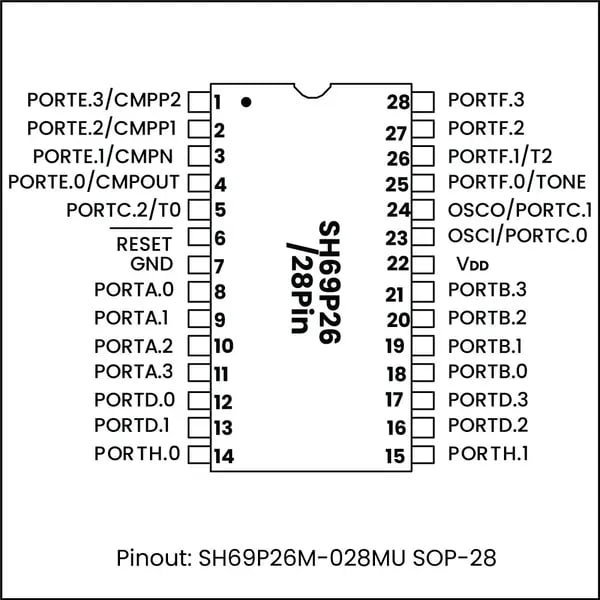

Pin Description (SOP-28)

Pin No.

Designation

Pin Mode

Description

1

PORTE.3

I/O

Bi-Directional I/O

COMPP2

Input

Shared with Comparator positive input 2

2

PORTE.2

I/O

Bi-Directional I/O

COMPP1

Input

Shared with Comparator positive input 1

3

PORTE.1

I/O

Bi-Directional I/O

COMPN

Input

Shared with Comparator negative input

4

PORTE.0

I/O

Bi-Directional I/O

COMOUT

Output

Shared with Comparator output

5

PORTC.2

I/O

Bi-Directional I/O

PORTC.2/T0

Input

Shared with Timmer 0 external clock input

6

PORTC3

I/O

Bi-Directional I/O (open-drain output)

RESET

Input

RESET Input(Low active)

7

GND

Power

Ground Pin

8

PORTA.0

I/O

Bi-Directional I/O

9

PORTA.1

I/O

Bi-Directional I/O

10

PORTA.2

I/O

Bi-Directional I/O

11

PORTA.3

I/O

Bi-Directional I/O

12

PORTD.0

I/O

Bi-Directional I/O

13

PORTD.1

I/O

Bi-Directional I/O

14

PORTH.0

I/O

Bi-Directional I/O

15

PORTH.1

I/O

Bi-Directional I/O

16

PORTD.2

I/O

Bi-Directional I/O

17

PORTD.3

I/O

Bi-Directional I/O

18

PORTB.0

I/O

Bi-Directional I/O

19

PORTB.1

I/O

Bi-Directional I/O

20

PORTB.2

I/O

Bi-Directional I/O

21

PORTB.3

I/O

Bi-Directional I/O

22

VDD

Power

Power supply pin

23

PORTC.0

I/O

Shared with bi-directional I/O port in the internal
RC oscillator code option

OSCI

Input

Oscillator input pin, connect to crystal/ceramic
oscillator or external resistor of external RC oscillator.

24

PORTC.1

I/O

Shared with bi-directional I/O port in the
RC oscillator code option

OSCO

Output

Oscillator output pin, connect to crystal/ceramic oscillator.

25

PORTF.0

I/O

Bi-Directional I/O

Input

Vector port interrupt. (falling edge active)

TONE

Output

Shared with TONE generator output

26

PORTF.1

I/O

Bi-directional I/O

Input

Vector port interrupt. (falling edge active)

T2

Input

Shared with Timer2 external clock input

27

PORTF.2

I/O

Bi-directional I/O

Input

Vector port interrupt. (falling edge active)

28

PORTF.3

I/O

Bi-directional I/O

Input

Vector port interrupt. (falling edge active)

SH69P26M OTP Programming Pin Description

Pin No.

Designation

Pin Mode

Sharing

Description

22

VDD

Power

VDD

Programming Power supply (+5.5V)

6

VPP

Power

RESET

Programming high voltage Power supply (+11V)

7

GND

Power

GND

Ground

23

SCK

Input

OSCI

Programming Clock input pin

8

SDA

I/O

PORTA.0

Programming Data pin

Programming Notice:

Never execute the "HALT" or "STOP" instruction while the Tone Generator is playing.

In System Programming Notice for OTP

The In System Programming technology is valid for OTP chip. The Programming Interface of the OTP chip must be set on user’s application PCB, and users can assemble all components including the OTP chip in the application PCB before programming the OTP chip. Of course, it’s accessible bonding OTP chip only first, and then programming code and finally assembling other components.

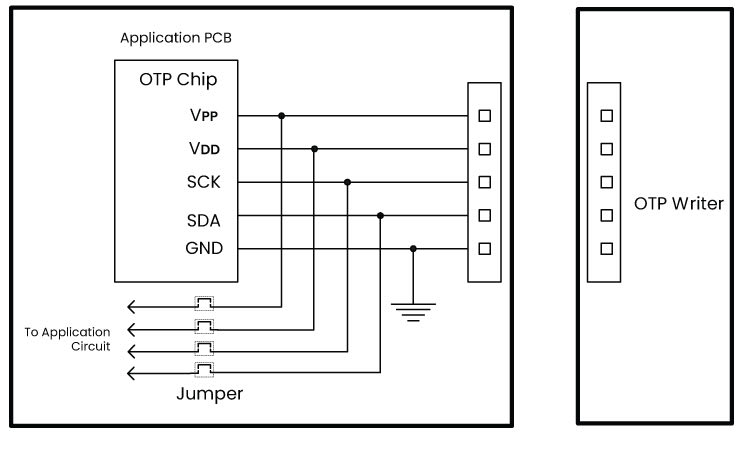

Since the programming timing of Programming Interface is very sensitive, therefore four jumpers are needed (VDD, VPP, SDA, SCK) to separate the programming pins from the application circuit as shown in the following diagram.

The recommended steps are the followings:

  1. The jumpers are open to separate the programming pins from the application circuit before programming the chip.
  2. Connect the programming interface with OTP writer and begin programming.
  3. Disconnect OTP writer and shorten these jumpers when programming is completed.

FAQ about SH69P26M Microcontroller

What is the SH69P26M-028MU microcontroller?

The SH69P26M-028MU is a 4-bit microcontroller based on the SH6610D architecture. It features 6K x 16 bits of OTPROM and 389 x 4 bits of RAM, making it suitable for various embedded applications that require low power and high efficiency.

What are the key features of the SH69P26M-028MU?

The key features include:

  • OTPROM: 6K x 16 bits
  • RAM: 389 x 4 bits (69 System Control Registers + 320 Data Memory)
  • Operating Voltage:
    • 30kHz - 4MHz @ 2.4V - 5.5V
    • 4MHz - 8MHz @ 4.5V - 5.5V
  • 28 CMOS Bi-directional I/O pins
  • Built-in timer and oscillator circuits
What are the typical applications for the SH69P26M-028MU microcontroller?

The SH69P26M-028MU is typically used in consumer electronics, industrial automation, home appliances, and other embedded system applications where compact size, low power consumption, and reliable performance are essential.

How does the microcontroller handle power consumption?

The microcontroller is designed to operate efficiently within a wide voltage range, from 2.4V to 5.5V. It supports multiple operating frequencies, allowing developers to optimize power consumption based on the specific requirements of their application.

How can I program the SH69P26M-028MU microcontroller?

The SH69P26M-028MU can be programmed using an appropriate OTPROM programmer, which allows you to write your application code into the microcontroller's memory. The programming process is straightforward, with support for various programming tools and environments.

Can it be used in battery-powered devices?

Yes, the SH69P26M-028MU's low power consumption and wide operating voltage range make it well-suited for battery-powered devices.

What is the operating temperature range for this microcontroller?

The microcontroller operates within a temperature range of -40°C to +85°C, making it suitable for a wide variety of environments, from consumer electronics to industrial applications.
